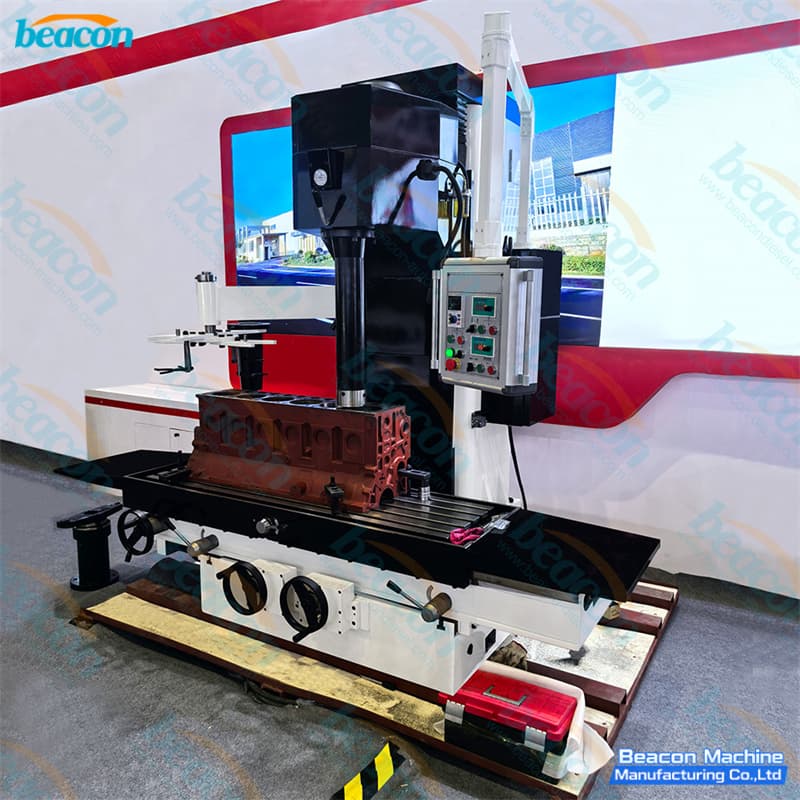

TX200 Engine Boring Machine | Vertical Cylinder Boring Machine

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Product Description

TX200 is a heavy-duty vertical machine designed for precise machining of worn engine cylinders during overhaul and reconditioning.

This engine boring machine adopts a rigid column structure and precision spindle system to ensure consistent boring quality.

As professional vertical cylinder boring machine, it supports gasoline and diesel engine blocks with smooth surface finish.

Its stable feed control and durable construction make TX200 an ideal solution for engine cylinder reboring in medium and large repair shops.

cylinder block boring system

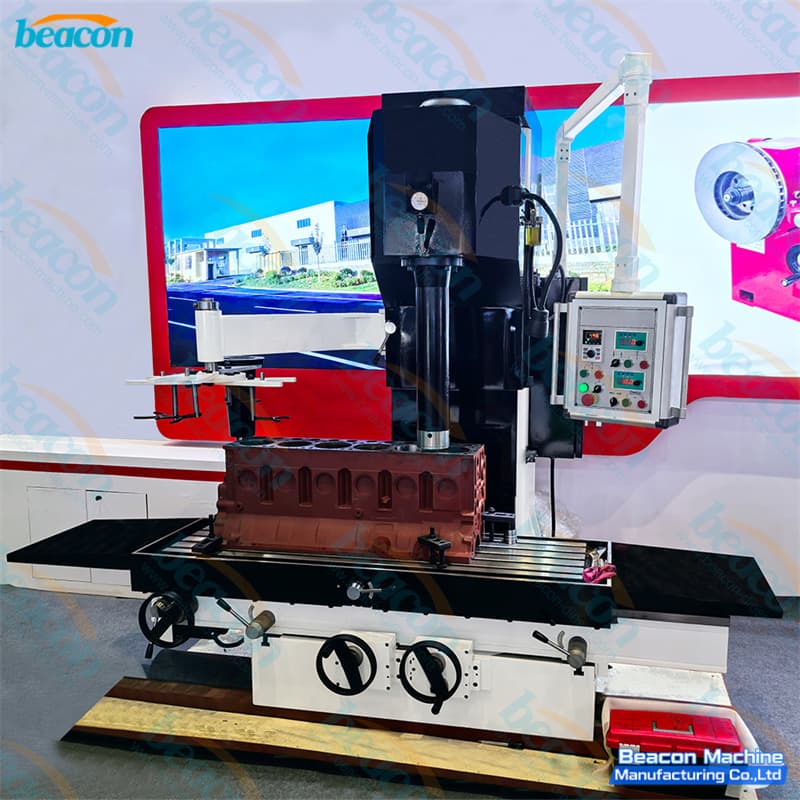

engine overhaul boring machine

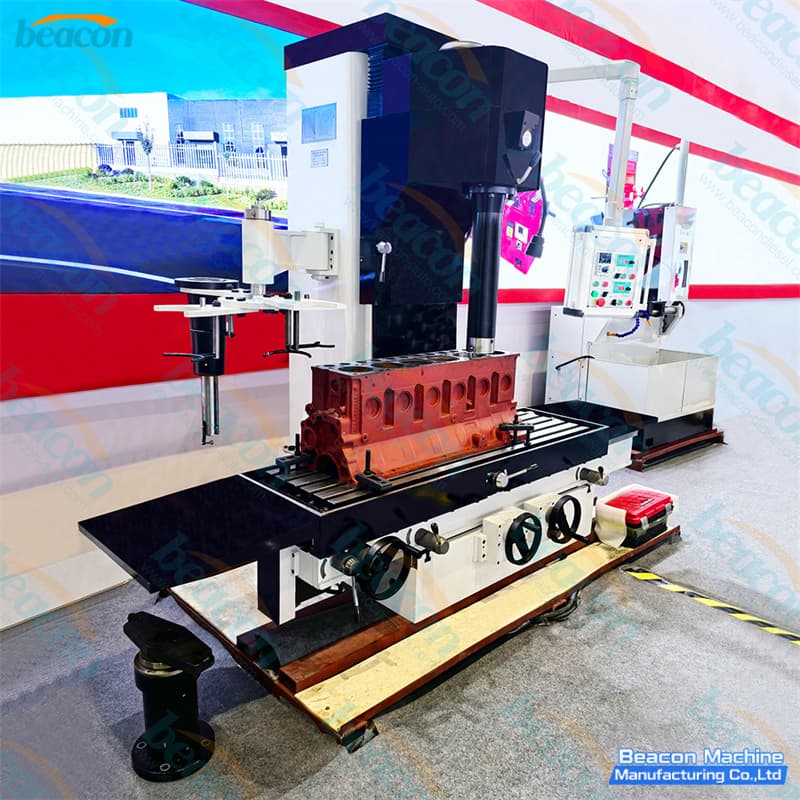

small engine boring machine price

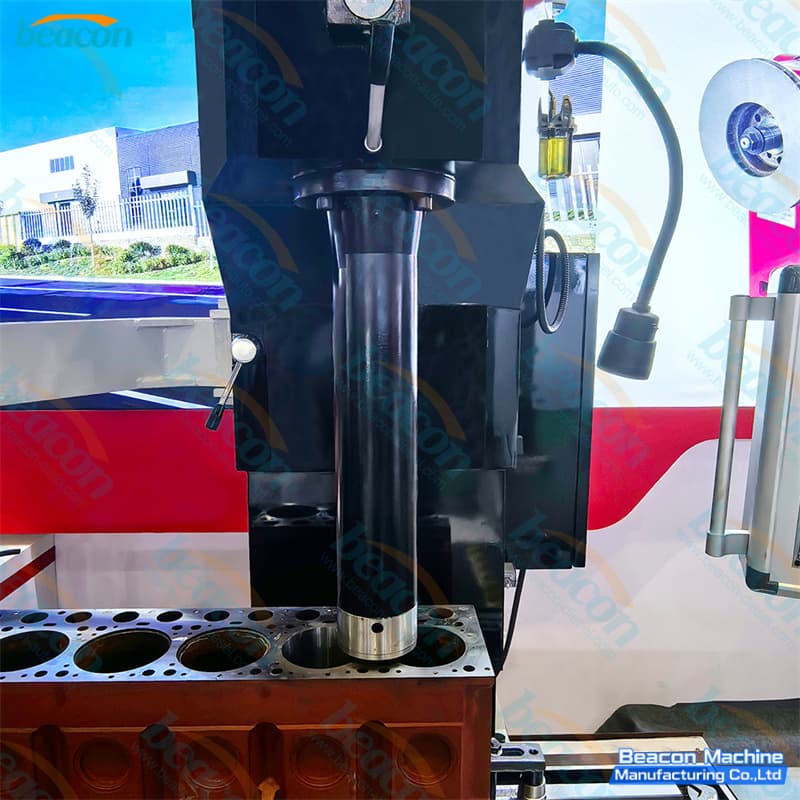

truck engine boring machine

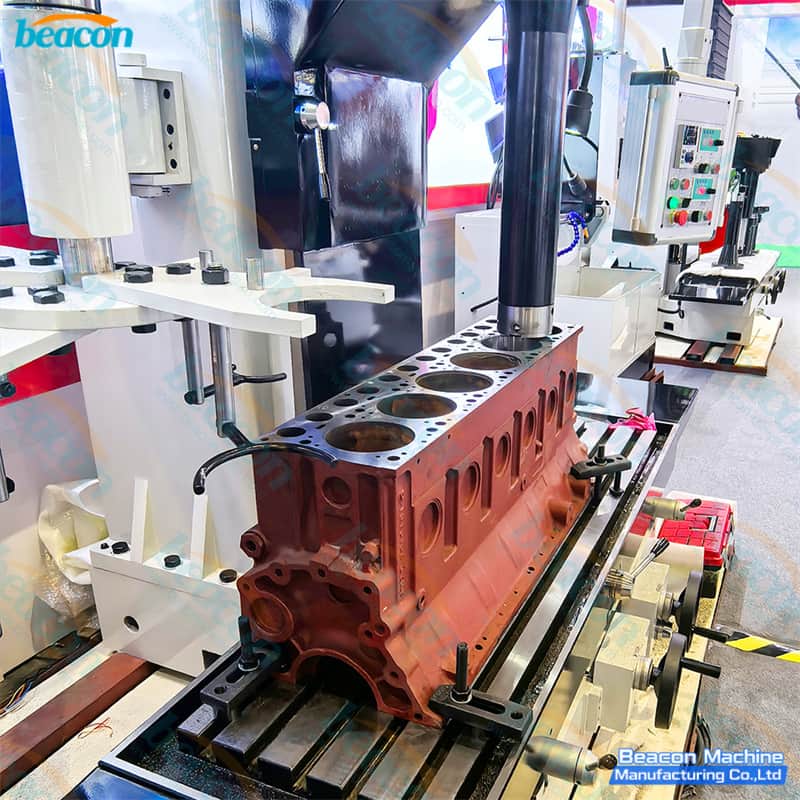

tractor engine boring machine

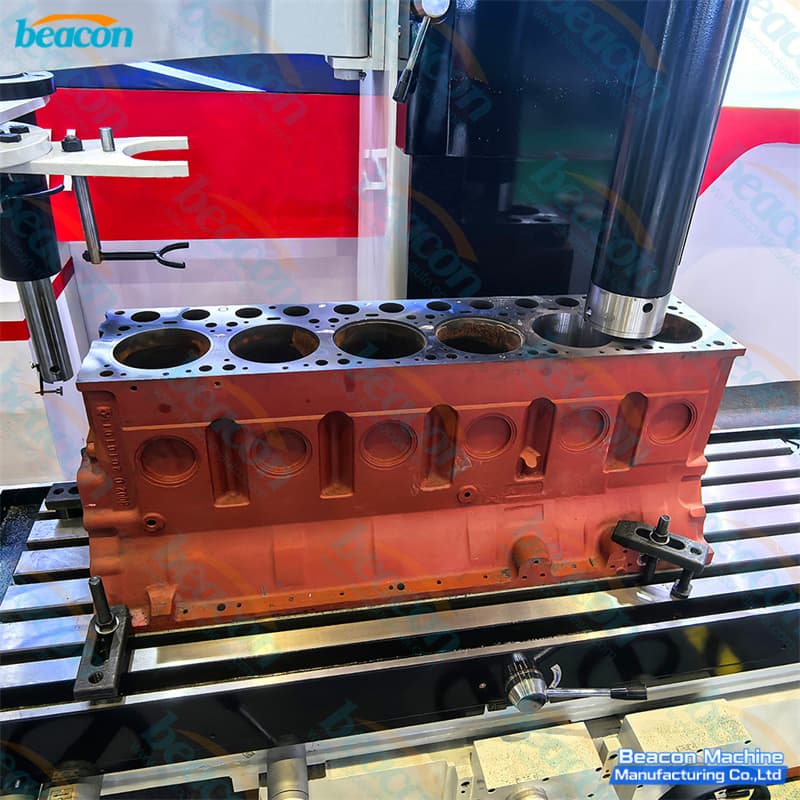

engine cylinder machining equipment,heavy duty boring machine for engines

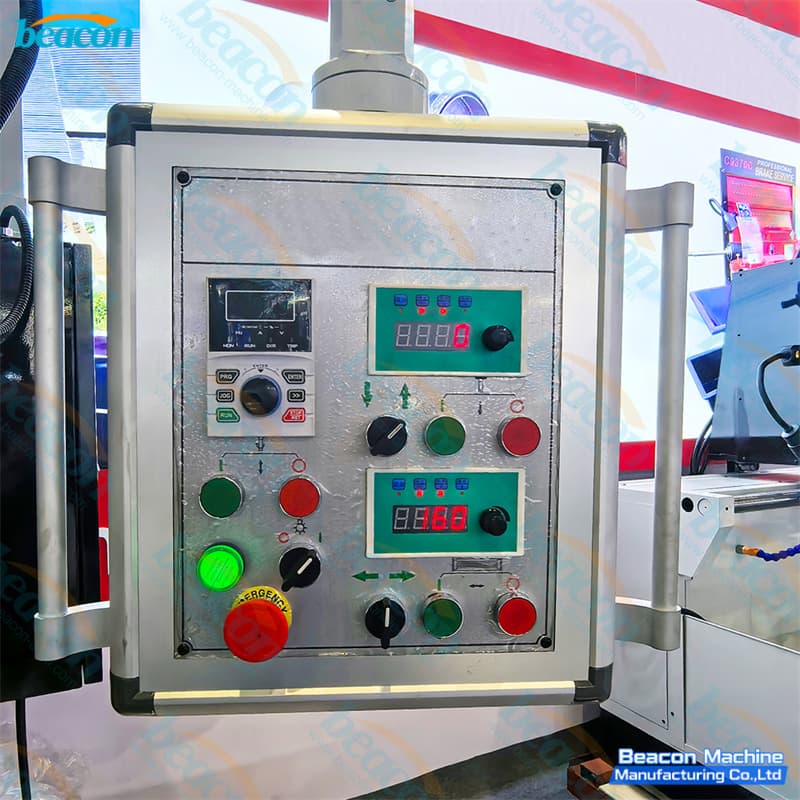

control panel

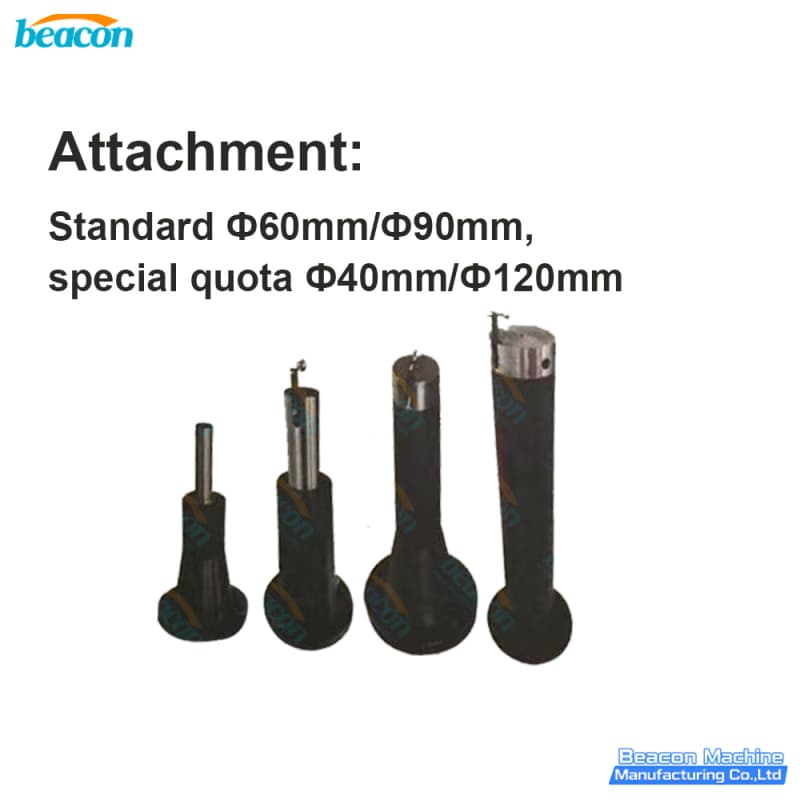

accessories

Item	Specification
Machine type	Vertical engine boring machine
Boring diameter range	45-200 mm
Max boring depth	500 mm
Spindle speed	120-1600 rpm
Automatic feed	0.05 – 0.25 mm/rev
Column stroke	420 mm
Table longitudinal travel	300 mm
Table cross travel	320 mm
Main motor power	4.5 kW
Coolant motor power	0.15 kW
Power supply	380V / 50Hz
Boring bar diameter	32 mm
Machining roundness	0.01 mm
Net weight	1500 kg
Overall dimensions	175011002500 mm
